Workshop

Garge

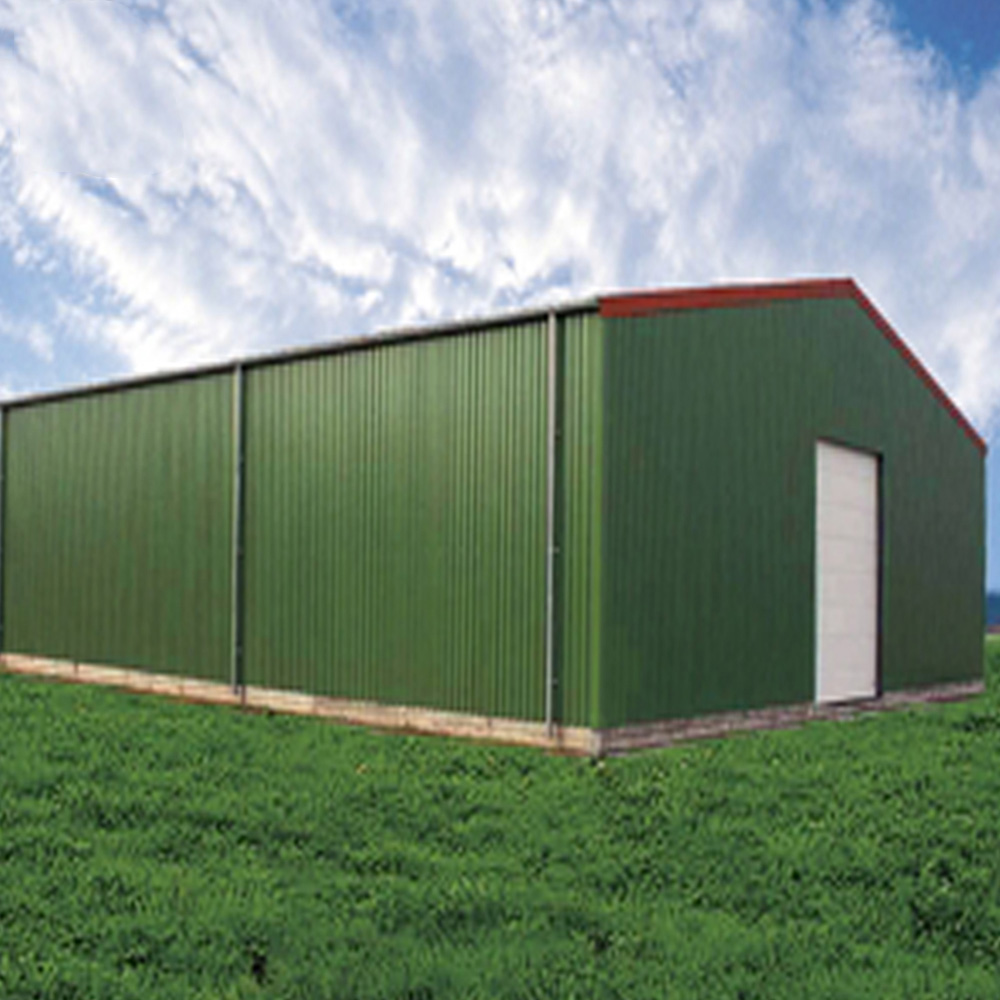

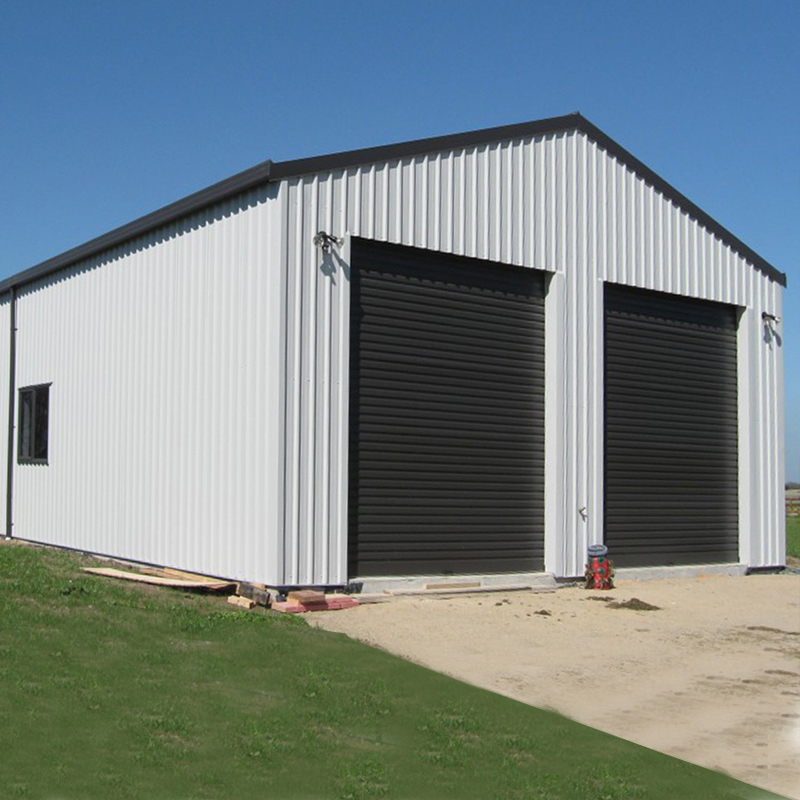

Prefabricated garages are a kind of light steel structure with sandwich panels for the wall and roof. It is beautiful and light to transport. All components of the garage are prefabricated before leaving the factory, easy to assemble and can be used repeatedly over 50 years.

Servise life: 50 years


The Characteristics Of The Steel Garage



1. The steel structure is light in weight
Although the bulk density of the steel structure is relatively large, its strength is high. Therefore, when the load and conditions are the same, the steel structure is lighter than other structures, which is convenient for transportation and installation, and can span a larger span.

2. The steel has good plasticity and toughness
Good plasticity, so that the steel structure generally will not suddenly break and fail due to accidental overload or local overload. Good toughness makes the steel structure more adaptable to dynamic loads. These properties of steel provide a sufficient guarantee for the safety and reliability of steel structures.

3. The steel structure is easy to manufacture, easy to industrialize, and the construction period is short
The steel structure is composed of various profiles and is easy to manufacture. Most of the components are produced by the steel processing company with high accuracy and high processing efficiency. The finished components are transported to the site for assembly, and are connected by bolts. The structure is light, the construction is convenient, and the construction is fast. In addition, the completed steel structure is also easy to disassemble, reinforce or reform.

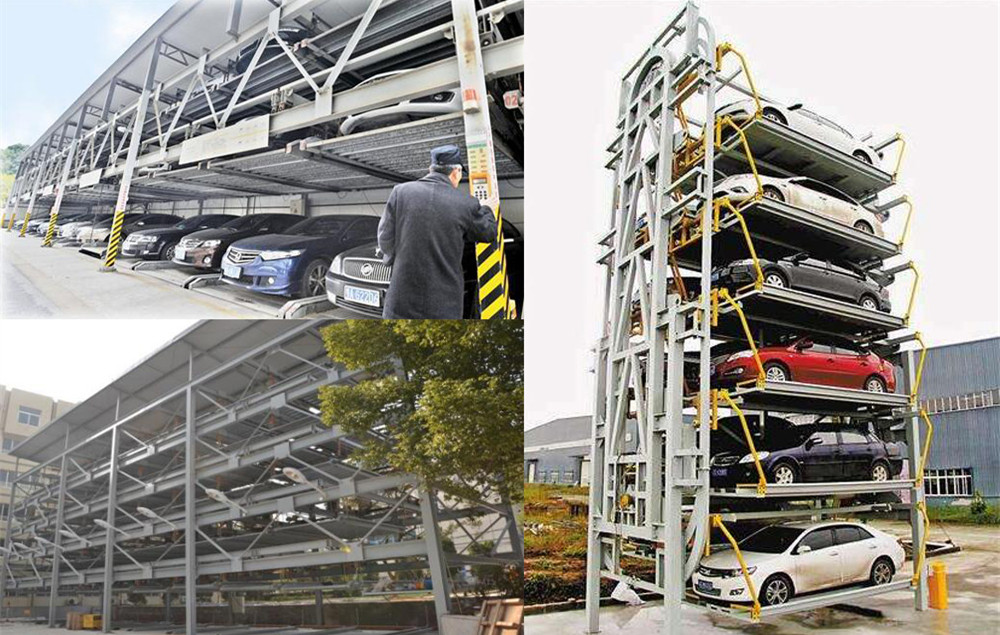

The Characteristics Of The three-dimensional simple lifting parking


(1) Beautiful appearance, high space utilization rate, saving floor space

The entry and exit of the three-dimensional garage vehicles is mainly realized by the lifting or lateral movement of the car board. The height between parking spaces on each floor can be designed according to the safety height of the vehicle, minimizing the average occupied space and area of the vehicle, and greatly improving the space utilization rate

(2) Low cost, low operation and high economic efficiency

Although the construction cost of a three-dimensional garage is higher than that of a traditional parking lot, it can save a lot of land use fees, etc. This is particularly important for the urban area where the land is as golden. In addition, the three-dimensional garage consumes less electricity for storing and storing vehicles, natural lighting and energy saving, and it can also be used for advertising to generate income, so the investment cost is recovered quickly


(3) Intelligent management, simple operation, convenient and quick access to the car, low management cost

The three-dimensional garage adopts the PLC control system to automatically operate, and automatically access the car, saving the car owner the time to find a parking space. The use of intelligent operation system saves manpower. Regardless of the number of parking spaces in the mechanical three-dimensional garage, only one person can complete the management work.


(4) High reliability, good stability, strong safety and super load-bearing capacity

The vehicle is stored in the upper space and isolated from other vehicles or people to avoid social security cases such as scratching or even theft of the vehicle, so that the protection of the vehicle has been improved. In terms of technology, the three-dimensional garage has safe automatic flexible vehicle technology, anti-falling devices, and stroke control devices, so as to fully ensure the operating safety of the garage and have sufficient wind and earthquake resistance.


The Material Of The Steel Garage

1. Main Steel Frame: The Columns And Beams Are Made Of Q355 Steel Or Q235 H Section Steel. The Secondary Structure Is Made Of Q235 Or Q355 Steel (Angle Steel, Round Steel, Steel Rod, Etc.)

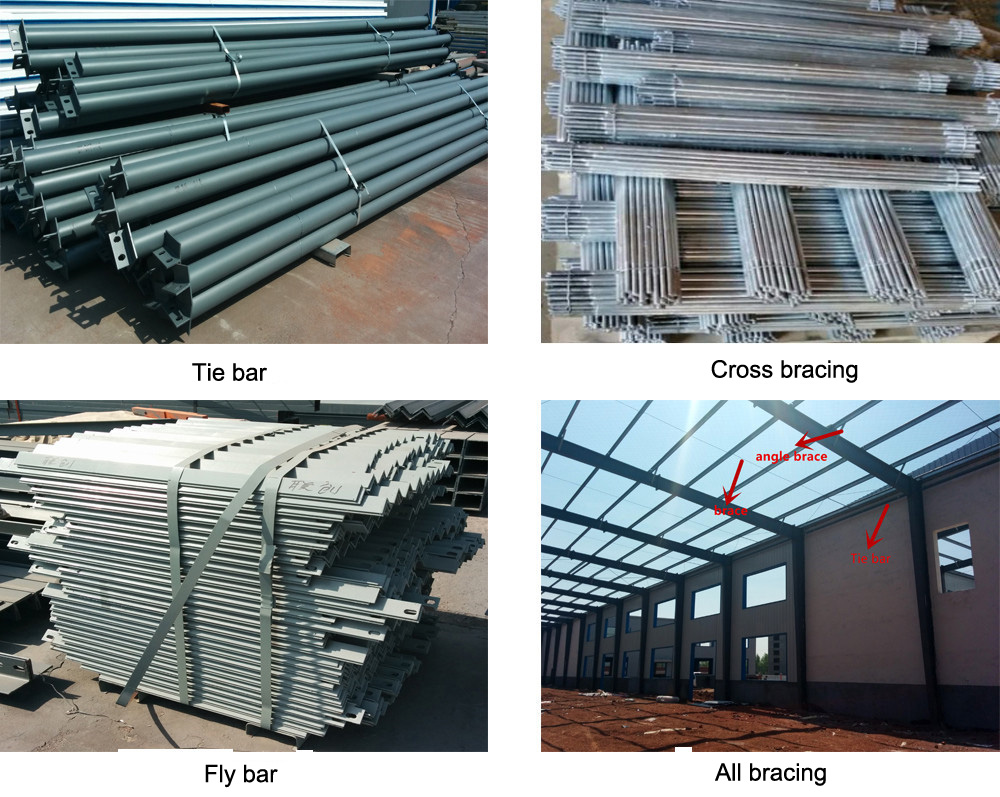

2. Secondary Structure: Q235 Or Q355 Steel (Angle Steel, Round Steel, Steel Rod, Etc.)

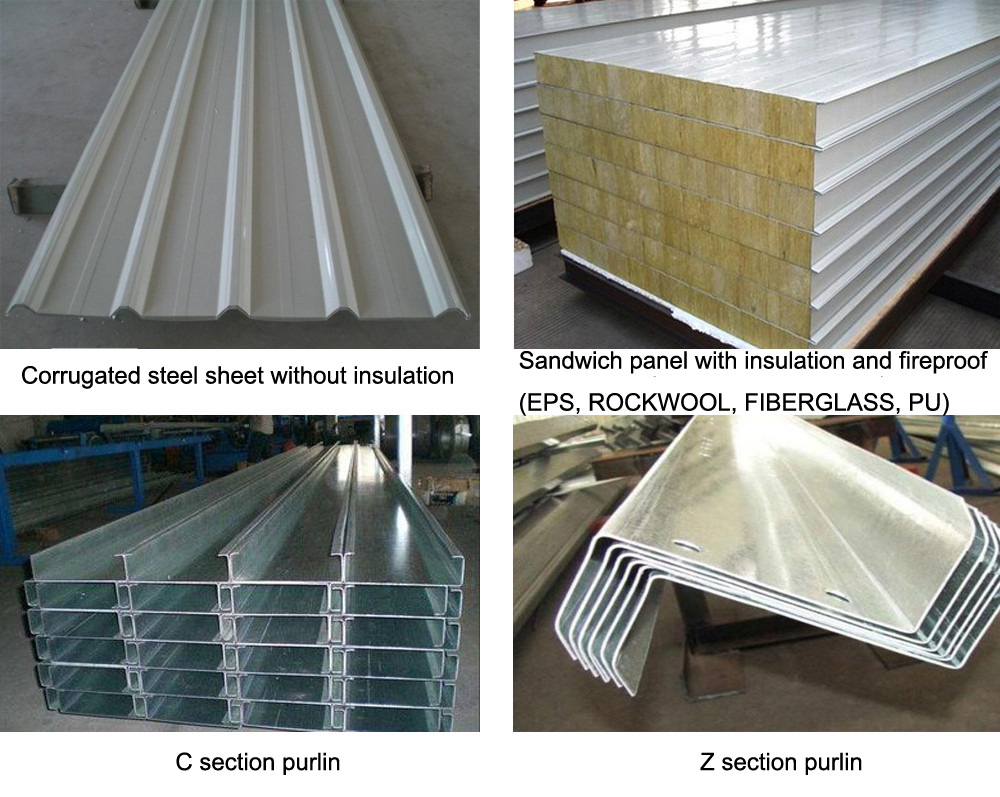

3. Cladding System: Purlin Is Made Of Q235 Steel With C Or Z Purlin.

Wall And Roof Have Two Types, Corrugated Steel Sheet And Sandwich Panel (EPS,ROCKWOOL, FIBERGLASS, PU, ).

The Thickness Of Sheet Is From 0.3mm -0.7mm. The Thickness Of Sandwich Panel's Insulation Mateiral Has 50mm, 75mm, 100mm,150mm,Etc.
