Service life: more than 50 years.
Fast build: Only need to be connected with bolts
Environmental protection: Basically no construction waste
Description Of Steel Structure Workshop

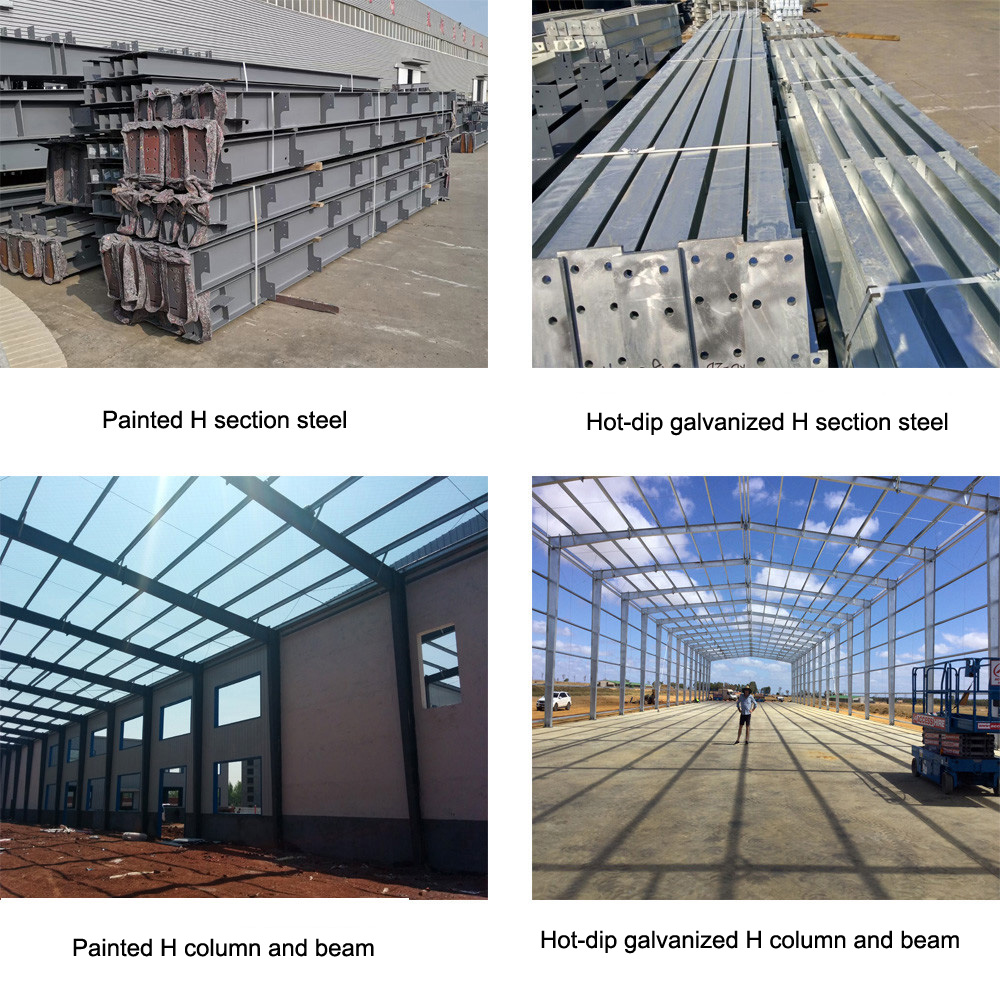

1. Main Steel Frame: The Columns And Beams Are Made Of Q355 Steel Or Q235 H Section Steel. The Secondary Structure Is Made Of Q235 Or Q355 Steel (Angle Steel, Round Steel, Steel Rod, Etc.)
2. Secondary Structure: Q235 Or Q355 Steel (Angle Steel, Round Steel, Steel Rod, Etc.)
3. Cladding System: Purlin Is Made Of Q235 Steel With C Or Z Purlin.
Wall And Roof Have Two Types, Corrugated Steel Sheet And Sandwich Panel (EPS,ROCKWOOL, FIBERGLASS, PU, ).
The Thickness Of Sheet Is From 0.3mm -0.7mm. The Thickness Of Sandwich Panel's Insulation Mateiral Has 50mm, 75mm, 100mm,150mm,Etc.

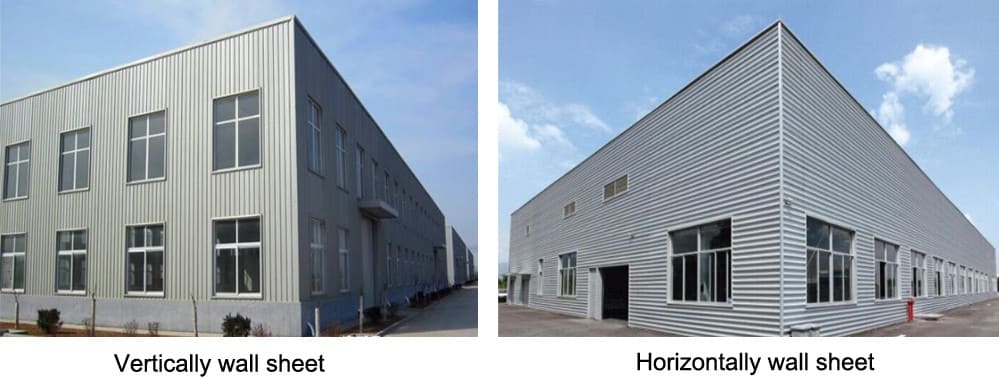

4. Type of steel workshop: The wall can be installed horizontally or vertically.

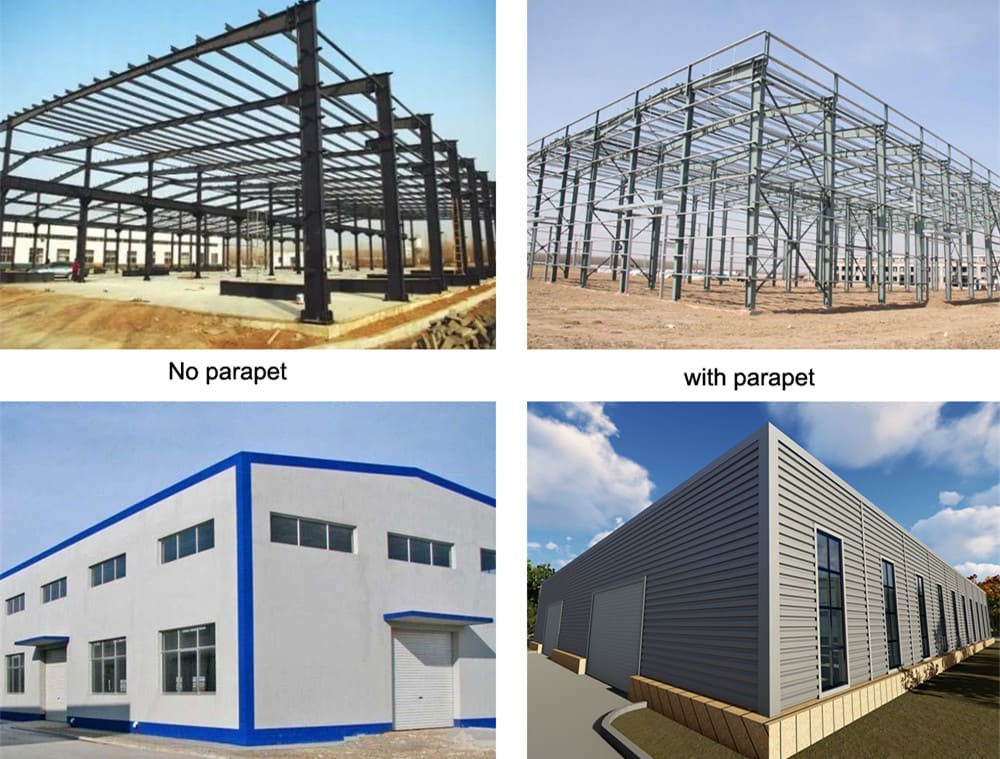

There is a parapet or no parapet on the wall.

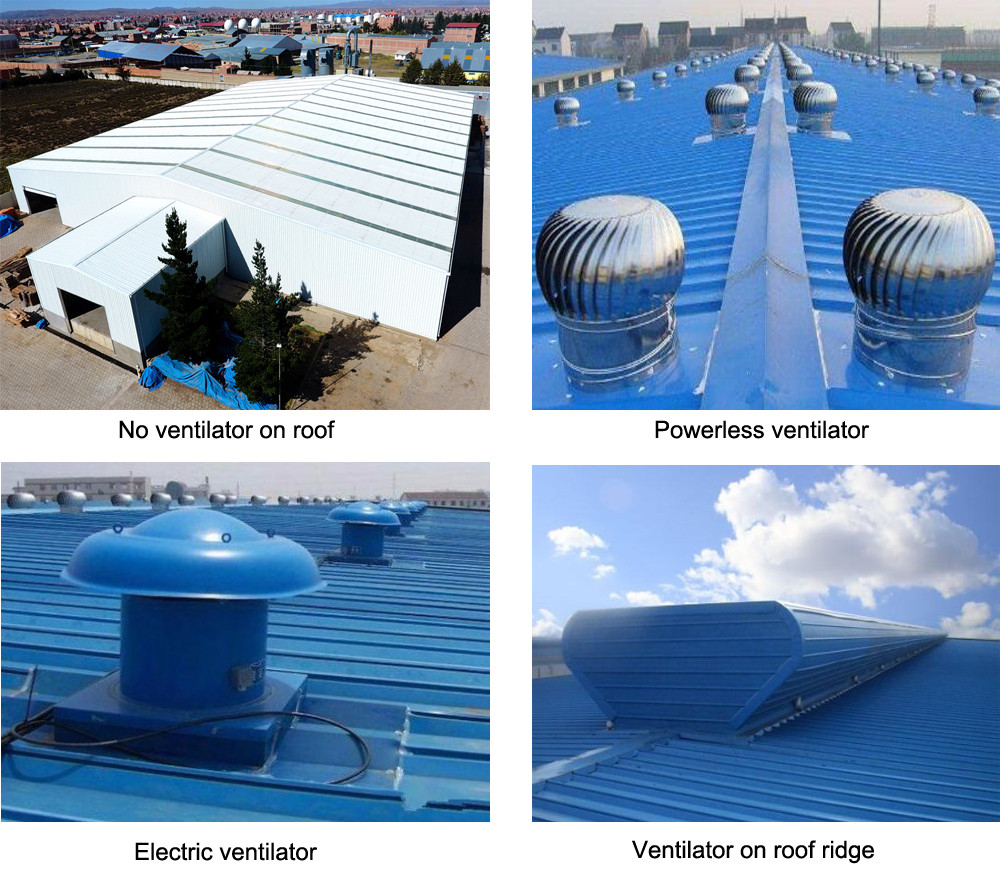

There is ventilator or no ventilator on roof

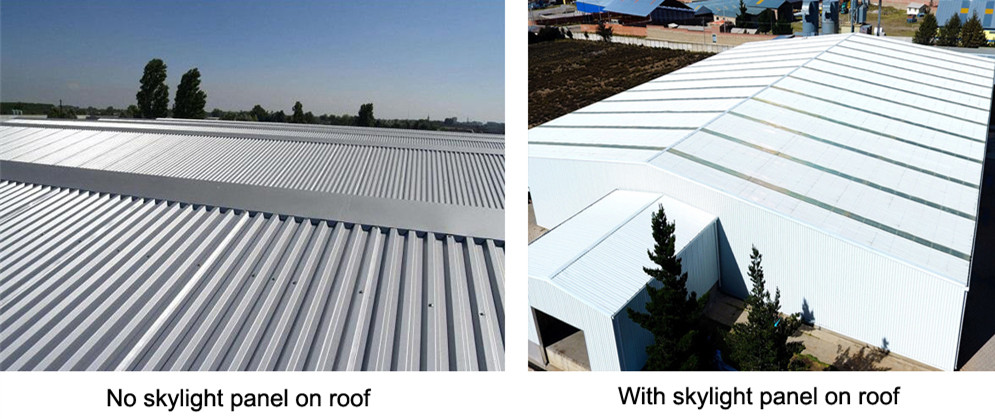

There is skylight panel or no skylight panel on roof

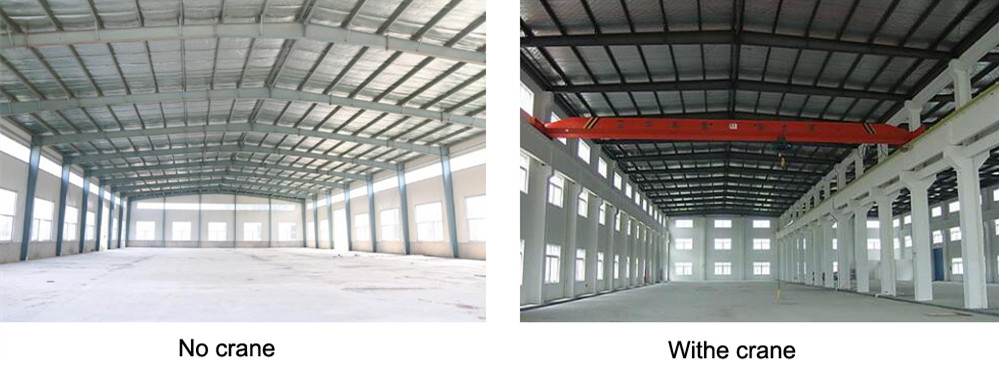

There is crane or no crane inside the warehouse

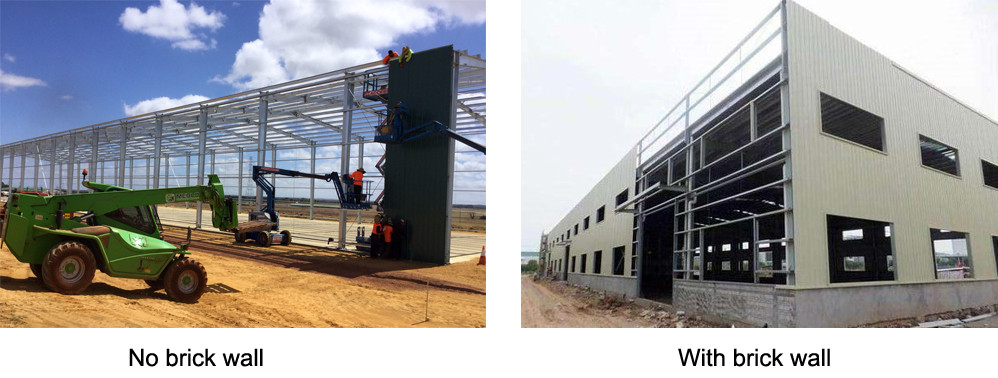

There is brick wall or no brick wall
There is middle column or no middle column, and multi-span building. Normal the width of more than 30m plus the middle columns will be economical and reasonable.

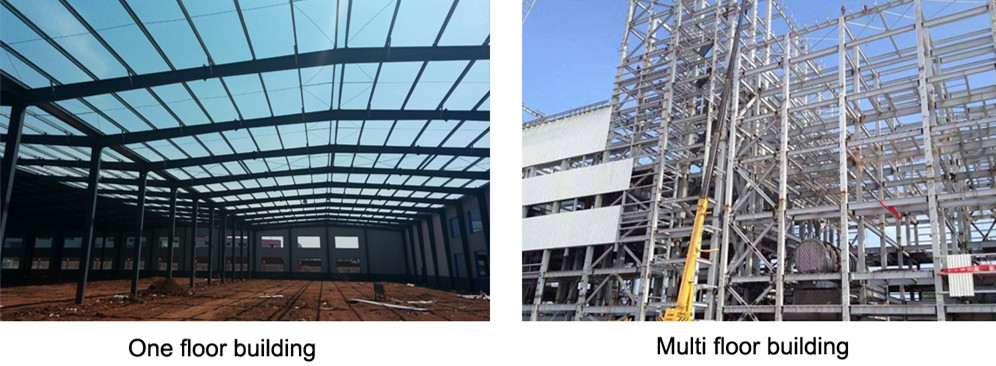

There is one floor building or multi-floor building, if it is multi floor building, we need to know the live load of it.
If you have any questions or requirement for the buildings, please contact us without hesitation.
